ASPERIOT: EM400-MUD

https://www.jotio.tech/web/image/product.template/393/image_1920?unique=b807a0c

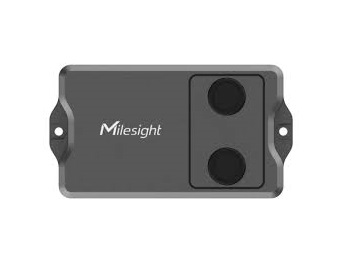

Ultrasonic sensor for distances ranging from 3-450 cm. The sensor is flexible, reliable and durable with small blind spots. Three modes are included - standard mode, basket mode and parking mode.

3,690.00 Kč 3690.0 CZK 3,690.00 Kč  without VAT

0.00 Kč  without VAT

Not Available For Sale

    This combination does not exist.

    Terms and conditions:
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Parameters and specifications

    Dimension    ​​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​​118 x 65 x 32,5 mm
    Frequency ​   ​​ ​ ​ ​ ​ ​ ​CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
    Tx Power ​ ​ ​ ​ ​  ​​  ​ ​​ ​ ​ ​ ​ ​ ​ ​​16 dBm
    Sensitivity ​ ​ ​ ​  ​ ​​​  ​ ​​ ​ ​ ​  ​ ​​​-137dBm @300bps
    Mode ​​ ​  ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​OTAA/ABP Class A​
    Range ​​  ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​3 - 450 cm

    Accuracy ​ ​  ​ ​ ​ ​ ​  ​ ​ ​  ​ ​ ​ ​​​± (1+0.3% * S) cm, S =Distance
    Resolution ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​1 mm
    Battery ​ ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​ER34615 Li-SOCL2 19000 mAh
    Battery Life ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​​​ ​to 10 years

    Operating temperature ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​​​-30°C to +70°C​
    Ingress Protection ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​ ​IP67
    Installation ​ ​  ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Pole, wall or DIN Rail Mounting


    Where to apply and areas of application

    ​A multifunctional device that is equipped with several application modes for different scenarios such as smart waste management, smart parking and other distance or level measurement applications. Its accurate measurement makes it ideal for a variety of applications, especially parking management or bin monitoring.

    The sensors are used to detect the occupancy of parking spaces through timely reporting of arriving and departing vehicles, thus providing parking managers with efficient parking analysis and optimization.

    The sensor also supports the monitoring of the fill level of medium or large bins, such as regular municipal bins. With an ultrasonic sensor to detect overflowing waste, a built-in three-axis accelerometer to detect the condition of the bin lid and a built-in NTC thermistor to detect waste burning.


    Parameters and specifications

    Dimension
    118 x 65 x 32,5 mm

    Frequency
    CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923

    Tx Power
    16 dBm

    Sensitivity
    -137dBm @300bps

    Mode​
    OTAA/ABP Class A​

    Range
    3 - 450 cm

    Accuracy
    ± (1+0.3% * S) cm,
    S = Distance

    Resolution
    1 mm

    Battery
    ER34615 Li-SOCL2 19000 mAh

    Battery Life
    to 10 years

    Operating temperature
    -40°C to +125°C​

    Ingress Protection
    IP67

    Installation
    Pole, wall or DIN Rail Mounting


    Where to apply and areas of application

    ​A multifunctional device that is equipped with several application modes for different scenarios such as smart waste management, smart parking and other distance or level measurement applications. Its accurate measurement makes it ideal for a variety of applications, especially parking management or bin monitoring.

    The sensors are used to detect the occupancy of parking spaces through timely reporting of arriving and departing vehicles, thus providing parking managers with efficient parking analysis and optimization.

    The sensor also supports the monitoring of the fill level of medium or large bins, such as regular municipal bins. With an ultrasonic sensor to detect overflowing waste, a built-in three-axis accelerometer to detect the condition of the bin lid and a built-in NTC thermistor to detect waste burning.
