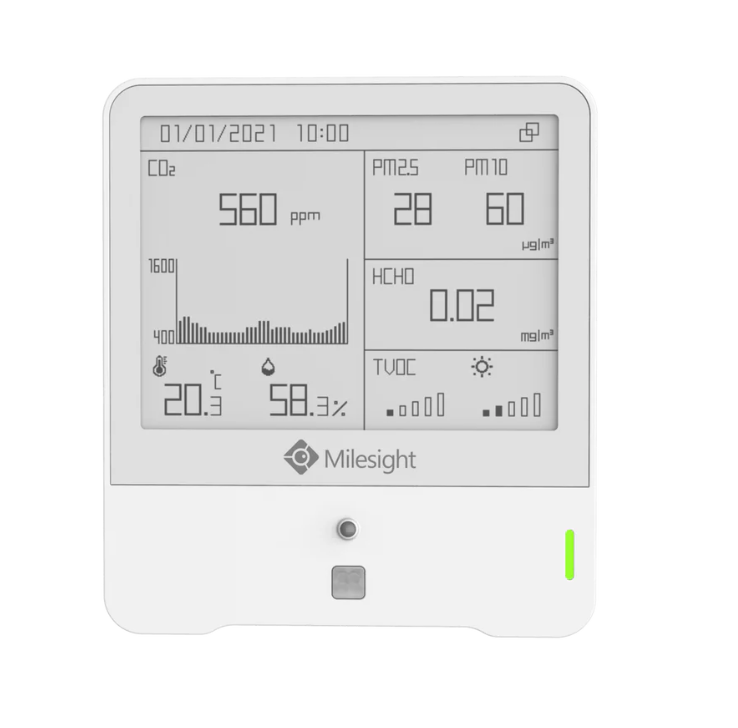

ASPERIOT: AM319

https://www.jotio.tech/web/image/product.template/366/image_1920?unique=342033e

Sensor for indoor air quality monitoring. With the sensor you can control 9 variables.

9,539.00 Kč 9539.0 CZK 9,539.00 Kč  without VAT

0.00 Kč  without VAT

Not Available For Sale

  • Měření

This combination does not exist.

Terms and conditions:
30-day money-back guarantee
Shipping: 2-3 Business Days

Parameters and specifications

Frequency ​​ ​​CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923

Tx Power ​​ ​16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)

Sensitivity ​-137dBm @300bps

Mode ​​OTAA/ABP Class C


Temperature

Operating Principle ​​​ ​Digital CMOSens® technology (MEMS)

Range ​​ ​-20°C - 60°C

Accuracy ​± 0,2 °C

Resolution ​0,1°C


Humidity

Operating Principle ​Digital CMOSens® technology (MEMS)

Range ​0 % to 100 % RH

Accuracy ​± 2 % RH

Resolution ​0,5 % RH


Motion

Operating Principle ​Passive infrared (PIR)

Detection Range ​80 ° Horizontal, 55 ° Vertical, 5 m

Status Vacant/Occupied


Light

Operating Principle ​​ ​Photodiode

Range ​​0-60000 Lux (Determine as 6 levels, 0-5)


TVOC

Operating Principle ​MOX (MEMS)

Range ​​ ​​1,00 to 5,00 (IAQ Rating)

Accuracy ​±1

Resolution ​​0,01


Barometric Pressure

Operating Principle ​Piezoresistive absolute pressure sensor (MEMS)

Range ​​260 - 1260 hPa

Accuracy ​±0,5 hPa

Resolution ​0,1 hPa

Carbon Dioxide (CO2)
Operating Principle Photoacoustic
Range ​​ ​400-2000 ppm
Accuracy ​± (50 ppm + 5 % odečtu) (-10°C až +60°C)
Resolution ​1 ppm

PM2,5 and PM10

Operating Principle ​Laser Scattering

Range ​​​0 - 1000 μg/m3

Accuracy ​0-100 (±10 μg/m3), 100-1000 (±10 %) (-10°C to +60°C)

Resolution ​1 μg/m3

Formaldehyde (HCHO)*

Princip činnosti ​​Elektrochemická metoda

Range ​​0 - 1,25 mg/m3

Accuracy ​​ ​±10 %

Resolution ​​ ​0,01 mg/m3

Working Life ​​ ​​ ​6 years


Ozone (O3)*

Princip činnosti Electrochemical

Range ​​​ ​0 - 10 ppm

Accuracy ​±5 % FS

Resolution ​0,01 ppm


Working Life ​2 years

Display ​4.2-inch Black & White E-Ink Screen
Button ​1 × Traffic Light Status Indicator + 1 × Buzzer
LED & Buzzer ​1 × Traffic Light Status Indicator
Configuration ​​a) Mobile App via NFC
​​b) PC software via NFC or USB Type-C port

Power Supply 5V/1A by Type-C Port
Operating Temperature ​​ -20°C - 60°C (E-Ink Screen: 0°C - 40°C)

Ingress Protection ​IP30

Dimension ​​100,8 × 114 × 22 mm

Installation ​3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting


*Pro senzor je třeba vybrat variantu HCHO nebo O3


Where to apply and areas of application

Sensor for indoor air quality monitoring. With the sensor you can control 9 variables.


Parameters and specifications

Frequency
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923


Tx Power ​
16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)


Sensitivity
-137dBm @300bps


Mode
OTAA/ABP Class C


Temperature

Operating Principle
Digital CMOSens® technology (MEMS)


Range
​-20°C - 60°C

Accuracy
​± 0,2 °C

Resolution
​0,1°C


Humidity

Operating Principle
Digital CMOSens® technology (MEMS)


Range
​0 % to 100 % RH


Accuracy
​± 2 % RH

Resolution
​0,5 % RH


Motion

Operating Principle
​Passive infrared (PIR)


Detection Range
80 ° Horizontal, 55 ° Vertical,

Status
Vacant/Occupied


Light

Operating Principle
Photodiode


Range
​0-60000 Lux (Determine as 6 levels, 0-5)


TVOC

Operating Principle
​MOX (MEMS)


Range
​1.00 - 5.00 (IAQ Rating)


Accuracy
​±1


Resolution
​0,01


Barometric Pressure

Operating Principle

Piezoresistive absolute pressure sensor (MEMS)


Range
260 - 1260 hPa


Accuracy
± 0,5 hPa


Resolution
0,1 hPa


Carbon Dioxide (CO2)
Operating Principle
Photoacoustic

Range
​400-2000 ppm

Accuracy
± (50 ppm+ 5 %of reading)(-10°C to +60°C)

Resolution
1 ppm

PM2,5 and PM10

Operating Principle
Laser Scattering


Range
​0 - 1000 μg/m3


Accuracy
​0-100 (±10 μg/m3), 100-1000 (±10 %) (-10°C to +60°C)


Resolution
​1 μg/m3


Formaldehyde (HCHO)*

Princip činnosti ​Elektrochemická metoda

Range
0 - 1,25 mg/m3

Accuracy
​±10 %

Resolution
​0,01 mg/m3

Working Life
​6 years


Ozone (O3)*

Operating Principle
Electrochemical


Range
​0 - 10 ppm


Accuracy
​±5 % FS


Resolution
​0,01 ppm


Working Life
​2 years


Display
4.2-inch Black & White E-Ink Screen


Button
1 × Traffic Light Status Indicator + 1 × Buzzer


LED & Buzzer
1 × Traffic Light Status Indicator


Configuration
​a) Mobile App via NFC
​b) PC software via NFC or USB Type-C port


Power Supply
5V/1A by Type-CPort


Operating Temperature
-20°C - 60°C  (E-Ink Screen: 0°C - 40°C)


Ingress Protection
​IP30


Dimension
​100,8 × 114 × 22 mm


Installation
3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting


*HCHO or O3 sensor is alternative option and both


Where to apply and areas of application

​Sensor for indoor air quality monitoring. With the sensor you can control 9 variables.
