ASPERIOT: EM320-TH

https://jotio.odoo.com/web/image/product.template/261/image_1920?unique=0a905f5

Highly accurate wireless temperature and humidity sensor made of material approved for food contact.

3,206.50 Kč 3206.5 CZK 3,206.50 Kč  With VAT

0.00 Kč  With VAT

Not Available For Sale

  • Construction

This combination does not exist.


Practical design

Devices for precise monitoring of temperature and humidity. Thanks to its size and easy integration, it enables remote environmental monitoring in a wide range of applications.

Practical design

Devices for precise monitoring of temperature and humidity. Thanks to its size and easy integration, it enables remote environmental monitoring in a wide range of applications.

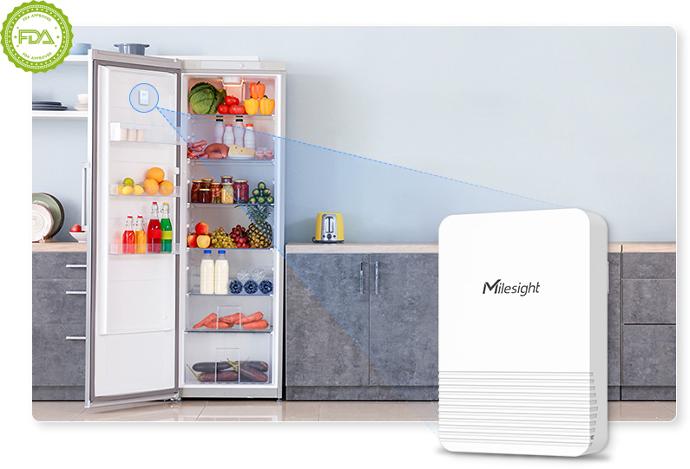

Material approved for contact with foodstuffs

By using FDA approved materials for food contact, potential health risks are eliminated.

Material approved for contact with foodstuffs

By using FDA approved materials for food contact, potential health risks are eliminated.

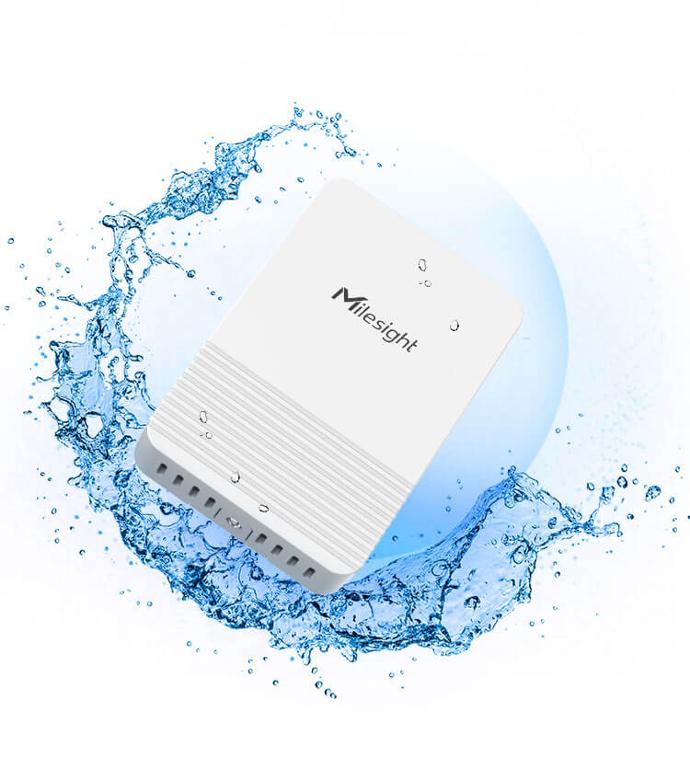

Robust cover

The high IP67-rated housing allows the sensor to be applied even in the harshest environments.

Robust cover

The high IP67-rated housing allows the sensor to be applied even in the harshest environments.

Universal applications

Cooling chains

Factories

Pharmacy

Cooling chains

Factories

Pharmacy

Parameters and specifications

Dimension​   ​​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​  ​ ​  ​ ​ ​​​​ ​85 x 58 x 18 mm
Frequency ​   ​​ ​ ​ ​ ​ ​ ​CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power ​ ​ ​ ​ ​  ​​  ​ ​​ ​ ​ ​ ​ ​ ​  ​ ​​ ​ ​ ​ ​ ​20dBm (915) / 16dBm (868) / 19dBm (470)
Sensitivity ​ ​ ​ ​  ​ ​​​  ​ ​​ ​ ​ ​  ​  ​ ​ ​​​​ ​​-137dBm @300bps
Mode ​​ ​  ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​  ​  ​​​​OTAA/ABP Class A​
Temperature range  ​​-30°C to +60°C
Accuracy  ​+/- 0,2°C
Resolution  ​0,1°C
Humidity range ​0 % to 100 % RH
Accuracy  ​+/- 2%
Resolution  ​0,5 % RH
Battery ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ER14505 Li-SOCL2 2x 2700 mAh
Battery life ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​ ​ ​ ​ ​ ​ 5

Operating temperature ​ ​ ​ ​ ​ ​ ​ ​​​​ ​ ​ ​ ​ ​-30°C to +60°C​
Cover protection ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​ ​​IP67
Installation ​ ​  ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Wall/magnet mounting


Where to apply and areas of application

The standard wall mount is suitable for use in smart farming for measuring humidity and temperature in greenhouses. Collecting this data allows to ensure an ideal environment for the crops by optimizing the humidification and ventilation systems. Monitoring the indoor temperature and humidity of buildings and linking the data to heating, ventilation and air conditioning systems is used to optimise energy consumption. It finds its application in a wide range of facility types such as schools, offices, apartments, hospitals or laboratories.

The magnetic version is suitable for use in cold chain and food, beverage and pharmaceutical storage areas.


Parameters and specifications

Frequency
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923

Tx Power
20dBm (915) / 16dBm (868) / 19dBm (470)

Sensitivity
-137dBm @300bps

Mode
OTAA/ABP Class A​

Temperature range
​-30°C to +60°C

Accuracy
+/- 0,2°C

Resolution
0,1°C

Humidity range
​0 % to 100 % RH

Accuracy
+/- 2%

Resolution
0,5 % RH

Battery
ER14505 Li-SOCL2 2x 2700 mAh

Battery Life
up to 5 years

Operating temperature
-30°C to +60°C​

Cover protection
​​IP67

Location
Wall/magnet mounting

Dimension
​85 x 58 x 18 mm


Where to apply and areas of application

The standard wall mount is suitable for use in smart farming for measuring humidity and temperature in greenhouses. Collecting this data allows to ensure an ideal environment for the crops by optimizing the humidification and ventilation systems. Monitoring the indoor temperature and humidity of buildings and linking the data to heating, ventilation and air conditioning systems is used to optimise energy consumption. It finds its application in a wide range of facility types such as schools, offices, apartments, hospitals or laboratories.

The magnetic version is suitable for use in cold chain and food, beverage and pharmaceutical storage areas.
