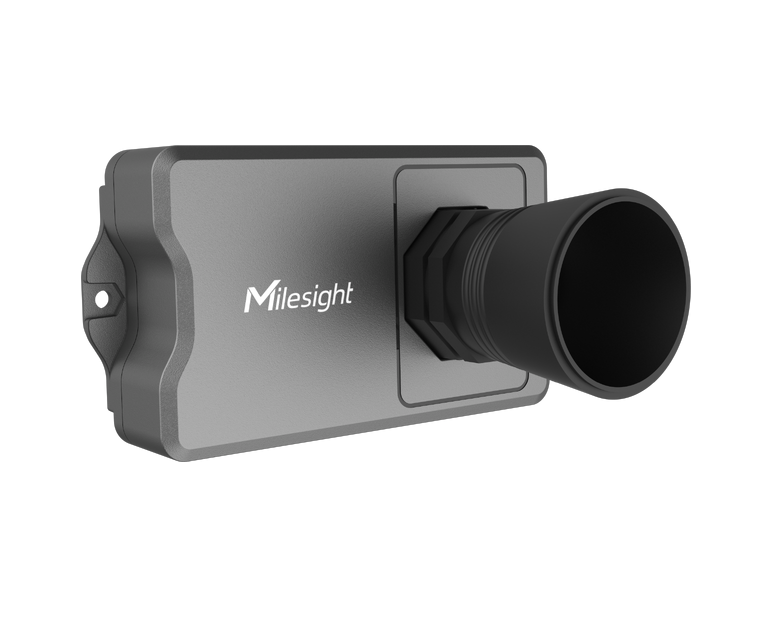

ASPERIOT: EM400-UDL

https://www.jotio.tech/web/image/product.template/526/image_1920?unique=532e60e

Ultrasonic sensor for distances ranging from 3-450 cm. The sensor is flexible, reliable and durable with small blind spots. Three modes are included - standard mode, basket mode and parking mode.

10,531.84 Kč 10531.84 CZK 10,531.84 Kč  With VAT

7,399.00 Kč  With VAT

Not Available For Sale

  • PN

This combination does not exist.

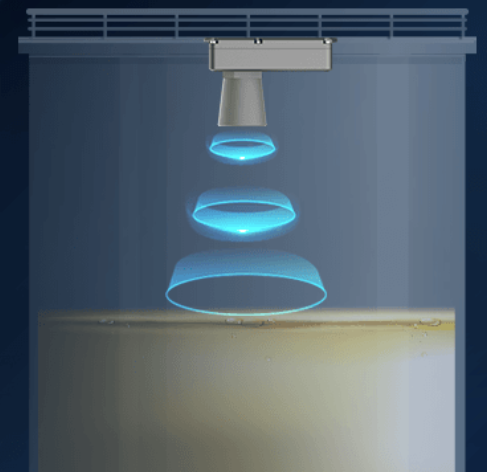

Contactless detection

Thanks to the use of ultrasonic distance detection and non-contact measurement, the probe remains uncontaminated and damage to the device is thus eliminated. Thanks to this feature, the device is suitable for monitoring various liquid or solid substances.

ultrasonic distance detection

Contactless detection

Thanks to the use of ultrasonic distance detection and non-contact measurement, the probe remains uncontaminated and damage to the device is thus eliminated. Thanks to this feature, the device is suitable for monitoring various liquid or solid substances.

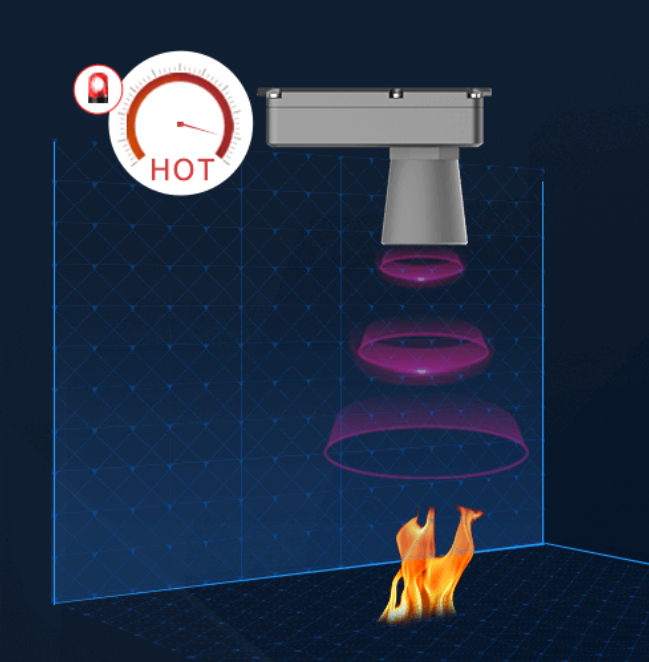

Fire prevention

Temperature monitoring

The built-in NTC thermistor monitors the temperature and sends a warning in time if the temperature changes suddenly. Thanks to this function, it is possible to react quickly in the event of a flare-up of the monitored medium.

Temperature monitoring

The built-in NTC thermistor monitors the temperature and sends a warning in time if the temperature changes suddenly. Thanks to this function, it is possible to react quickly in the event of a flare-up of the monitored medium.


Tilt tracking

The device is equipped with a built-in three-axis accelerometer that can be used to monitor the tilt status of the device and notify the user if the device is positioned correctly.

Tilt tracking

Tilt tracking

The device is equipped with a built-in three-axis accelerometer that can be used to monitor the tilt status of the device and notify the user if the device is positioned correctly.


Areas of use

Areas of use

Waste Management

Waste Management

Industry

Industry

Agriculture

Agriculture

Car Park

Car Park

Waste Management

Industry

Agriculture

Car Park

Parameters and specifications

LoRaWAN version
Frequency ​​​​​EU868
Tx Power ​​​16 dBm
Sensitivity ​​​-137dBm @300bps
Mode ​​​OTAA/ABP Class A

NB-IoT/Cat M Version
Cellular band ​Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/ B66/B85
​Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/ B66/B71/B85
SIM Slot ​​​1 (Micro SIM--3FF)
Aplication Mode ​​​TCP/UDP/MQTT/AWS/Milesight

Measurement
Standard Version
Range: ​​C100: 25 to 1000 cm
Accuracy: ​ ± (1+0.3%*S) cm ​ (S = Distance), (- 15°C to 60°C)
Resolution: ​​1 mm

Verze Snow:
Vzdálenost: S050: 50 to 500 cm
Přesnost: ​​± (1% FS), (- 30°C až 65°C)
Rozlišení: ​1 mm

Device position
Status Normal/Tilt

Temperature
Range ​-40° to 125 °C
Resolution ​ 0,1°C


Baterry ​2x  9000​ mAh ER26500 Li-SOCL2 B
Battery Life ​LoRaWAN version:
​> 10 years (10-min interval, 25°C)
​NB-IoT/Cat M version:
​​ ​TCP/UDP - around 10 years
​​​ ​MQTT/AWS - around 5 years (4x Times Report per Day)
Operating Temperature ​​-30°C to +70°C​
Relative Humidity ≤95% (non-condensing)​
Ingress Protection ​IP67
Color and Material ​​Black gray, Gray, ABS+ PC (Flame Retardant)
Installation ​​​ ​On the Flat Surfaces with Screws
Dimension ​​ ​118 x 65 x 32,5 mm


​Where to apply and areas of application

​A multifunctional device that is equipped with several application modes for different scenarios such as smart waste management, smart parking and other distance or level measurement applications. Its accurate measurement makes it ideal for a variety od applications, especially parking management or bin monitoring.

​The sensors are used to detect the occupancy of parking spaces through timely reporting of arriving and departing vehicles, thus providing parking managers with efficient parking analysis and optimization.

The sensor also support the monitoring of the fill level od medium or large bins, such as regular municipal bins. With an ultrasonic sensor to detect overflowing waste, a built-inthree-axis accelerometer to detect condition of the bin lid and a built-in NTC thermistor to detect waste burning.

Parameters and specifications

LoRaWAN version
Frequency
​​​ ​EU868

Tx Power
16 dBm

Sensitivity
-137dBm @300bps

Mode
OTAA/ABP Class A

NB-IoT/Cat M Version
Cellular Band
​Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/ B66/B85
Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/ B66/B71/B85

Slot SIM
​​​1 (Micro SIM--3FF)

Application Mode
TCP/UDP/MQTT/AWS/Milesight

Measurement
Standardní version
Range
​​C100: 25 to 1000 cm
Accuracy
​± (1+0.3%*S) cm ​ (S = distance), (- 15°C to 60°C)
Resolution
​1 mm

Pro version:
Range
​​W100: 50 to 1000 cm
Accuracy
​ ± (1% FS), (- 30°C to 65°C)
Resolution
​1 mm

Device Position
Status
Normal/Tilt

Temperature
Range
​​-40° to 125 °C
Resolution
​0,1°C

Battery
​​2x  9000​ mAh ER26500 Li-SOCL2 Battery

Battery Life
LoRaWAN version:
> 10 years (10-min interval, 25°C)

​NB-IoT/Cat M version:
TCP/UDP - around 10 years
MQTT/AWS - around 5 years (4x Times Report per Day)

Operating Temperature
-30°C to +70°C​

Relative Humidit
≤95% (Non-condensing)​

Ingress Protection
IP67

Color and Material
Black gray, gray, ABS + PC (Flame Retardant)

Installation​
On the Flat Surfaces with Screws

Dimension
118 x 65 x 32,5 mm


​Where to apply and areas of application

​A multifunctional device that is equipped with several application modes for different scenarios such as smart waste management, smart parking and other distance or level measurement applications. Its accurate measurement makes it ideal for a variety od applications, especially parking management or bin monitoring.

​The sensors are used to detect the occupancy of parking spaces through timely reporting of arriving and departing vehicles, thus providing parking managers with efficient parking analysis and optimization.

The sensor also support the monitoring of the fill level od medium or large bins, such as regular municipal bins. With an ultrasonic sensor to detect overflowing waste, a built-inthree-axis accelerometer to detect condition of the bin lid and a built-in NTC thermistor to detect waste burning.
