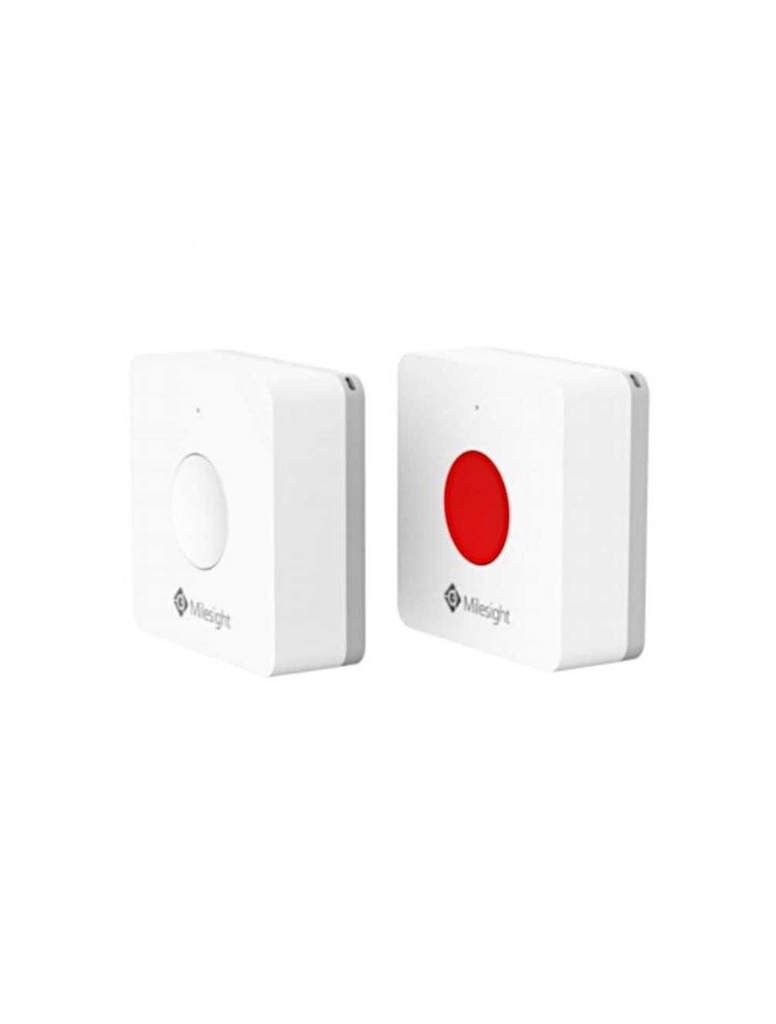

ASPERIOT: WS101

https://jotio.odoo.com/web/image/product.template/373/image_1920?unique=76d54f2

LoRaWAN-based smart button for wireless control, triggering and SOS alarms. The button has three positions.

1,827.10 Kč 1827.1000000000001 CZK 1,827.10 Kč  With VAT

0.00 Kč  With VAT

Not Available For Sale

  • BUTTON COLOR

This combination does not exist.


Universal button for wireless control with LoRaWAN technologies. The device supports a multi-down function, where these presses can be defined by the user to control different devices or trigger scenes. The red button is primarily used to send SOS alarms. ASPERIOT WS101 provides a wide option for increasing security and users.

Universal button for wireless control with LoRaWAN technologies. The device supports a multi-down function, where these presses can be defined by the user to control different devices or trigger scenes. The red button is primarily used to send SOS alarms. ASPERIOT WS101 provides a wide option for increasing security and users.

Multifunctional device

Short press to turn on your lights. Press twice to start the air conditioner. Long press to call for help. The universal button allows users to control several different functions at once. The device can be customized according to your requirements.

Multifunctional device

Short press to turn on your lights. Press twice to start the air conditioner. Long press to call for help. The universal button allows users to control several different functions at once. The device can be customized according to your requirements.


A Helper That Is Always Close

The device can be easily installed in place, moved as needed or kept with you at all times. Thanks to the technology used, you can use its functions from almost anywhere.

A Helper That Is Always Close

The device can be easily installed in place, moved as needed or kept with you at all times. Thanks to the technology used, you can use its functions from almost anywhere.


Safety and comfort

The device has an emergency button function and can thus offer security for the elderly, the sick or children. If necessary, they can simply make contact and call for help.

Safety and comfort

The device has an emergency button function and can thus offer security for the elderly, the sick or children. If necessary, they can simply make contact and call for help.

Areas of use

Areas of use

School

Industry

Hospital

School

Industry

Hospital

Parameters and specifications

Frequency ​CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
​Tx Power
​​​16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity ​​-137 dBm @300bps
Mode ​OTAA/ABP Class A
Button​
​​​1 × External Button + 1 × PowerReset Button (Internal)
LED Indicator ​​​1
​Buzzer
​​​ ​Support
​Configuration​
​​NFC Configuration via Mobile App​
Power Supply
​​​1 × 1650 mAh ER14335 Li-SOCl2 battery
​Battery Life
​​ ​​9 years (10 Presses per day, SF7 for EU868) 6.5 years (10 Presses per day, SF10 for EU868)​
Operating Temperature
​​-20 °C to +60 °C
​Ingress Protection ​​ ​​IP30

Dimension ​​​​50 × 50 × 18 mm, Button: Φ20 mm (Φ0.79 in)
​Color
​White (Button: White/Red Optional)​
​Installation
​​​ On the flat surfaces with screws or 3M tapes, Lanyard​


Where to apply and areas of application

Smart button for wireless control and alarm triggering with a range of up to 15 km in open areas and up to 2 km in built-up areas. The button is used to summon help and is suitable for industrial workers, the elderly, the sick or children. It can be mobile or placed in a fixed location and moved elsewhere if required.


Parameters and specifications

Frequency
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923

Tx Power
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)

Sensitivity
-137 dBm @300bps

Mode
OTAA/ABP Class A

Button​
1 × External Button + 1 × PowerReset Button (Internal)

LED Indicato
1

Buzzer
Support

Configuration
NFC Configuration via Mobile App​

Power Supply
1 × 1650 mAh battery ER14335 Li-SOCl2

Battery Life
9 years (10 Presses per day, SF7 for EU868) 6.5 years (10 Presses per day, SF10 for EU868)​

Operating Temperature
-20 °C to +60 °C

​Ingress Protection
IP30

Dimension
50 × 50 × 18 mm, Button: Φ20 mm (Φ0.79 in)

​Color
White (Button: White/Red Optional)​

Installation
On the flat surfaces with screws or 3M tapes, Lanyard​


Where to apply and areas of application

Smart button for wireless control and alarm triggering with a range of up to 15 km in open areas and up to 2 km in built-up areas. The button is used to summon help and is suitable for industrial workers, the elderly, sick or children. It can be mobile or placed in a fixed location and moved elsewhere if required.
