  2. ASPERIOT: EM300-TH

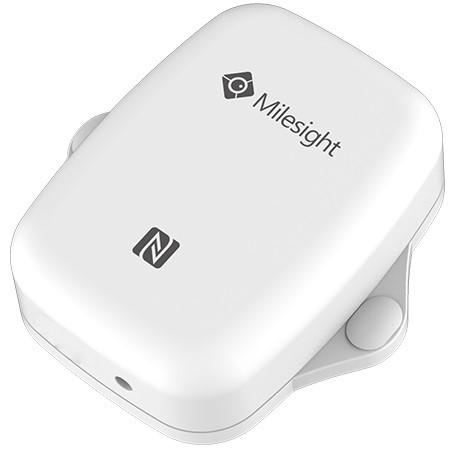

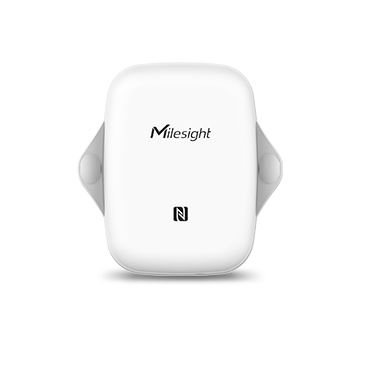

ASPERIOT: EM300-TH

https://jotio.odoo.com/web/image/product.template/294/image_1920?unique=b7c2a56

Highly durable temperature and humidity sensor with a data transmission range of up to 2 km in urban areas and 15 km in rural areas.

1,963.83 Kč 1963.83 CZK 1,963.83 Kč  without VAT

0.00 Kč  without VAT

Not Available For Sale

This combination does not exist.

Contact Us



Reliable and accurate

The innovative sensor using LoRaWAN technology represents a reliable and effective solution for measuring temperature and humidity.

Reliable and accurate

The innovative sensor using LoRaWAN technology represents a reliable and effective solution for measuring temperature and humidity.

Compact and practical

The sensor is designed to be integrated into different environments. This feature enables monitoring wherever it is needed, even in places with limited space.

Compact and practical

The sensor is designed to be integrated into different environments. This feature enables monitoring wherever it is needed, even in places with limited space.

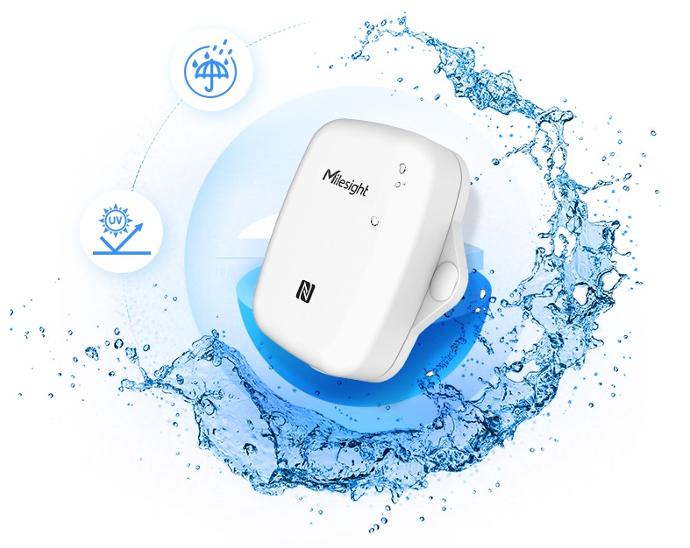

Robust cover

The high degree of protection IP67 and resistance to UV radiation increases the reliability of the device and extends its service life. Thanks to its resistance to water and dust, the device is also suitable for demanding conditions.

Robust cover

The high degree of protection IP67 and resistance to UV radiation increases the reliability of the device and extends its service life. Thanks to its resistance to water and dust, the device is also suitable for demanding conditions.

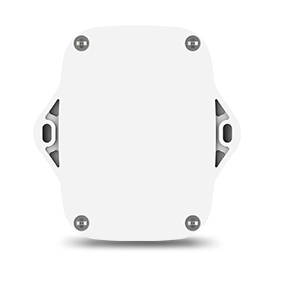

Quick and easy installation

Thanks to the possibility of being placed on the wall with screws or 3M tape, the installation of the device is very easy, allowing for quick deployment in different environments.

Quick and easy installation

Thanks to the possibility of being placed on the wall with screws or 3M tape, the installation of the device is very easy, allowing for quick deployment in different environments.

Parameters and specifications

Dimension​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​  ​ ​ ​ ​88 x 87 x 27 mm
Frequency ​ ​ ​ ​  ​ ​​ ​ ​ ​ ​ ​ ​EU868
Tx Power ​ ​ ​ ​ ​ ​ ​ ​​  ​ ​​ ​ ​ ​ ​ ​ ​  ​ ​​ ​ ​ ​​16dBm
Sensitivity ​ ​ ​ ​ ​ ​  ​ ​​​  ​ ​​ ​ ​ ​  ​  ​ ​ ​​​​ ​-137dBm @300bps
Mode ​ ​ ​​ ​  ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​  ​ ​ ​​​OTAA/ABP Class A​
Temperature Range ​ ​ ​-30 °C to + 70 °C
Accuracy ​ ​ ​ ​ ​0°C to + 70°C (±0,3°C), -30°C to 0°C (±0,6°C)
Resolution ​ ​ ​ ​ ​0,1°C
Humadity range ​ ​ ​ ​0 % to 100 %RH
Accuracy ​ ​ ​ ​ ​10% to 90% RH (±3%), below 10% and above 90% relative humidity (±5%)
Resolution ​ ​ ​ ​ ​0,5 %RH
Battery ​ ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ER18505 Li-SOCL2 4000 mAh battery (upgradeable to 8000 mAh)
Battery Life ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​ ​ ​ ​ ​ ​ ≧5 (for 1 battery)
Operating Temperature​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​ ​​​ ​ ​ ​-40°C to +125°C​
Ingress Protection ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​IP67
Installation​ ​ ​  ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​​ Wall (using screws or 3M tape)


Where to apply and areas of application

Suitable for measuring temperature and humidity in offices, laboratories, greenhouses, warehouses, cold chains or for food preservation.


Parameters and specifications

Frequency
EU868

Tx Power
16dBm (470)

Sensitivity
-137dBm @300bps

Mode
OTAA/ABP Class A​

Temperature Range
​-30 °C to + 70 °C

Accuracy
​0°C to + 70°C (±0,3°C), -30°C to 0°C (±0,6°C)

Resolution
​0,1°C

Humadity range
​0 % to 100 % RH

Accuracy
​10% to 90% RH (±3%), below 10% and above 90% relative humidity (±5%)

Resolution
​0,5 % RH

Battery ​ ​
ER18505 Li-SOCL2 4000 mAh battery (upgradeable to 8000 mAh)

Battery Life
​ ≧5 (for 1 battery)

Operating Temperature
​-40°C to +125°C​

Ingress Protection
​IP67

Installation​ ​ ​
​Wall (using screws or 3M tape)

Dimension​
​​​​88 x 87 x 27 mm


Where to apply and areas of application

Suitable for measuring temperature and humidity in offices, laboratories, greenhouses, warehouses, cold chains or for food preservation.
