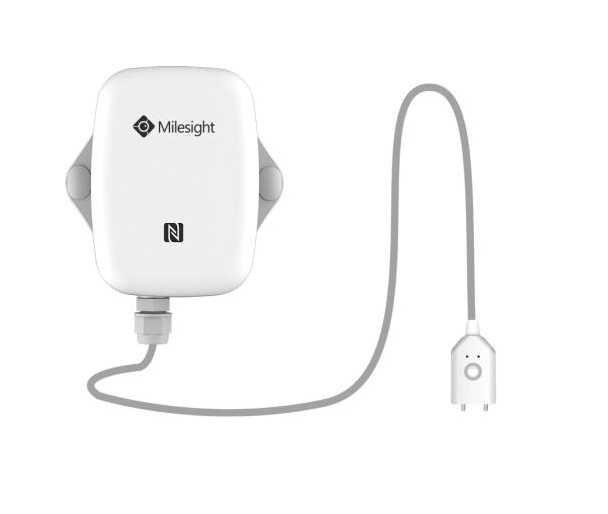

EM300-SLD
Point leak detector for water or other liquids including a temperature and humidity sensor based on LoRaWAN technology with a range of up to 10 m.
Reliable protection of your property
The compact point detector reacts to the presence of water or other liquid substances. Through an alarm alert, it provides the possibility of quick action to keep damage costs to a minimum. It can be placed wherever there is a potential risk of water leakage.
3 sensors in 1
The highly sensitive sensor detects the presence of liquid as low as 5 mm. It also includes built-in temperature and humidity sensors to ensure complete environmental monitoring.
3 sensors in 1
The highly sensitive sensor detects the presence of liquid as low as 5 mm. It also includes built-in temperature and humidity sensors to ensure complete environmental monitoring.
Point leak detection of liquids
The probe can be used to monitor water leakage within two fixed points. Immediate detection of water leaks will help prevent potential water damage to property.
Point leak detection of liquids
The probe can be used to monitor water leakage within two fixed points. Immediate detection of water leaks will help prevent potential water damage to property.
Suitable for harsh environments
The device is designed to withstand the harshest conditions. Thanks to the IP67 protection, dust is completely prevented from entering the device and it is also protected against immersion in water.
In addition, thanks to the low power consumption, the device can last up to 10 years.
Suitable for harsh environments
The device is designed to withstand the harshest conditions. Thanks to the IP67 protection, dust is completely prevented from entering the device and it is also protected against immersion in water.
In addition, thanks to the low power consumption, the device can last up to 10 years.
What the sensor can monitor
Pipe leak
Basement flooding
Pump failure
Parameters and specifications
Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power 17dBm (470) / 16dBm (868) / 20dBm (915)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Type Probe, spot detection
Cable Length 1,5 m (Optional cable lengths of hundred meters available)
Temperature measurement range -30 °C to +70 °C
Accuracy 0 to 70°C: ±0.3°C
-30 to 0°C: ±0.6°C
Resolution 0,1°C
Humidity measurement range 0 % - 100 % RH
Accuracy ±3% (10-90% RH)
±5% (other ranges)
Resolution 0,10%
Power Supply ER18505 Li-SOCl2 4000 mAh (8000 mAh optional)
Battery Life ≧ 5 years ( for 1 battery)
Operating Temperature -30°C to 70°C
Ingress Protection IP67
Dimension 88 × 87 × 27 mm
Installation Wall (screws or 3M adhesives)
Where to apply and areas of application
With point leak detection, potential water damage to property can be prevented. The detector switches on the moment the liquid level rises by 5 mm. It can be used for example in laboratories, warehouses or shopping centres.
Parameters and specifications
Frequency
CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power
17dBm (470) / 16dBm (868) / 20dBm (915)
Sensitivity
-137dBm @300bps
Mode
OTAA/ABP Class A
Type
Probe, spot detection
Cable Length
1,5 m (Optional cable lengths of hundred meters available)
Temperature measurement range
-30 °C to +70 °C
Accuracy
0 to 70°C: ±0.3°C
-30 to 0°C: ±0.6°C
Resolution
0,1°C
Humidity measurement range
0 % - 100 % RH
Accuracy
±3% (10-90% RH)
±5% (other ranges)
Resolution
0,10%
Power Supply
ER18505 Li-SOCl2 4000 mAh (8000 mAh optional)
Battery Life
≧ 5 years ( for 1 battery)
Operating Temperature
-30°C to 70°C
Ingress Protection
IP67
Dimension
88 × 87 × 27 mm
Installation
Wall (screws or 3M adhesives)
Where to apply and areas of application
With point leak detection, potential water damage to property can be prevented. The detector switches on the moment the liquid level rises by 5 mm. It can be used for example in laboratories, warehouses or shopping centres.
