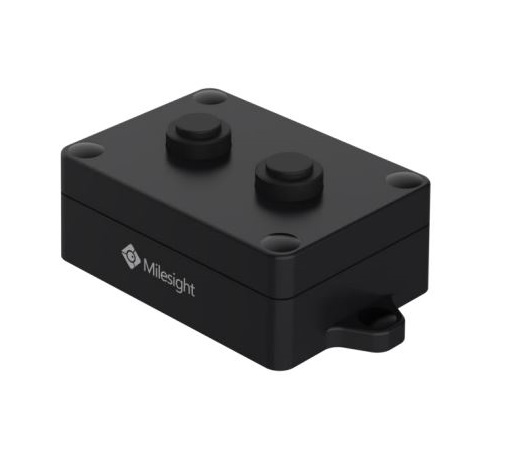

ASPERIOT: EM310-UDL

https://www.jotio.tech/web/image/product.template/370/image_1920?unique=f214de0

Ultrasonic distance sensor for monitoring the fill level of containers with solids or liquids.

3,672.35 Kč 3672.35 CZK 3,672.35 Kč  without VAT

0.00 Kč  without VAT

Not Available For Sale

This combination does not exist.



Parameters and specifications

Frequency ​​ ​​CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923

Tx Power ​​ ​​​16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)

Sensitivity ​​ ​-137 dBm @300bps

Mode ​​ ​OTAA/ABP Class A

Range ​3 - 450 cm

Accuracy ​​ ​± (1+0,3 %*S) cm, S=Distance

Resolution ​​ ​​1 mm

Configuration​ ​​ Normal/Tilt

Configuration ​​ ​NFC Configuration via Mobile App

Power Supply​ ​2 × 3500 mAh battery ER17505 Li-SOCl2

Battery Life ​Up to 10 years (interval 10 min + 20 runs per day)

Operating Temperature​ ​​-15 °C to +60 °C

Ingress Protection​ ​IP67

Dimension ​​ ​111 × 62 × 40 mm

Weight ​​ ​168 g

Installation​ On flat surfaces using screws


Where to apply and areas of application

The ultrasonic distance sensor is designed to detect the filling of bins, bins or containers. The device is suitable for installation on all types of containers and is suitable for monitoring solid and liquid substances. It can be used in smart waste management, monitoring water tanks or manhole covers. The device is also a suitable solution for smart car parks, where it increases the efficiency of car park management by detecting the occupancy of parking spaces.


Parameters and specifications

Frequency
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923


Tx Power​
​​16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)


Sensitivity
​-137 dBm @300bps


Mode
OTAA/ABP Class A


Range
3 - 450 cm


Accuracy
​± (1+0,3 %*S) cm, S=Distance


Resolution
1 mm


Configuration
Normal/Tilt


Configuration
​NFC Configuration via Mobile App


Power Supply
2 × 3500 mAh baterie ER17505 Li-SOCl2


Battery Life
Up to 10 years (interval 10 min + 20 runs per day)


Operating Temperature
-15 °C to +60 °C


Ingress Protection
​IP67


Dimension
​111 × 62 × 40 mm


Weight
​168 g


Installation
On flat surfaces using screws


Where to apply and areas of application

The ultrasonic distance sensor is designed to detect the filling of bins, bins or containers. The device is suitable for installation on all types of containers and is suitable for monitoring solid and liquid substances. It can be used in smart waste management, monitoring water tanks or manhole covers. The device is also a suitable solution for smart car parks, where it increases the efficiency of car park management by detecting the occupancy of parking spaces.
