ASPERIOT: AM103

https://jotio.odoo.com/web/image/product.template/361/image_1920?unique=545d9be

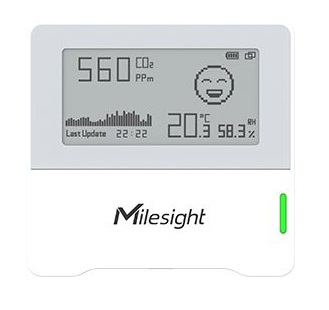

Air quality sensor (3in1)

7,258.79 Kč 7258.79 CZK 7,258.79 Kč  without VAT

0.00 Kč  without VAT

Not Available For Sale

This combination does not exist.

Contact Us



Thanks to the sensor, you'll know not only when to ventilate, but also what kind of air your employees, colleagues, customers or family are breathing. High concentrations of certain substances in the air have a negative effect on humans. With a smart sensor you will always have the CO2 concentration under control. In addition, the sensor can be useful to optimise heating thanks to the built-in temperature and humidity sensors.

Easily and conveniently

With the sensor, you can monitor air parameters and air quality in real time.

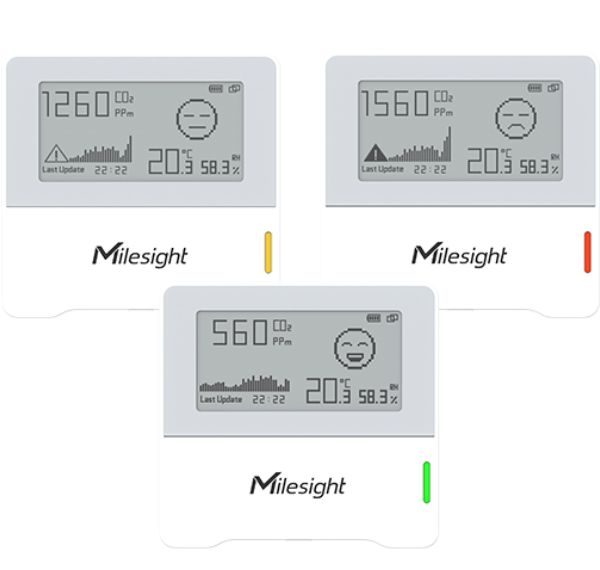

The sensor displays the air condition in three levels. With the LED indicator and the emoji displayed, you can easily see what kind of air you spend your time in.

Green indicates that the air quality is fine, orange indicates a warning when the measured parameters are close to the set limit value and red means that the air quality is poor and you need to open a window and ventilate the room.


Easily and conveniently

With the sensor, you can monitor air parameters and air quality in real time.

The sensor displays the air condition in three levels. With the LED indicator and the emoji displayed, you can easily see what kind of air you spend your time in.

Green indicates that the air quality is fine, orange indicates a warning when the measured parameters are close to the set limit value and red means that the air quality is poor and you need to open a window and ventilate the room.

Combined 3-in-1 solution

Keep track of your air quality without having to use multiple devices. With this sensor, you can control the heating, ventilation or air conditioning in a room and save energy and money. With one device, you'll be in control of the carbon dioxide level, temperature and humidity inside the room.

Combined 3-in-1 solution

Keep track of your air quality without having to use multiple devices. With this sensor, you can control the heating, ventilation or air conditioning in a room and save energy and money. With one device, you'll be in control of the carbon dioxide level, temperature and humidity inside the room.

Highly accurate with smart screen mode

If the current measured value is close to the last measured value, the screen will stop updating to save power.


Highly accurate with smart screen mode

If the current measured value is close to the last measured value, the screen will stop updating to save power.

Where the sensor can be used

Schools

Nemocnice

Veřejné budovy

Kanceláře

Nákupní centra

Domácnosti

Chcete se dozvědět více o škodlivých látkách, které se nacházejí ve vzduchu? Zjistěte,jaké látky jsou senzory schopné měřita jak vám pomohou vytvořit zdravější prostředí pro sebe i své blízké, kolegy či zaměstnance.

Školy

Nemocnice

Veřejné budovy

Kanceláře

Nákupní centra

Domácnosti

Chcete se dozvědět více o škodlivých látkách, které se nacházejí ve vzduchu? Zjistěte, jaké látky jsou senzory schopné měřita jak vám pomohou vytvořit zdravější prostředí pro sebe i své blízké, kolegy či zaměstnance.

Parametry a specifikace

LoRaWAN Frekvence ​ ​​​EU868
Výkon ​ ​ ​ ​ ​​​16dBm
Citlivost ​ ​ ​ ​ ​-137dBm @300bps
Režim ​ ​ ​ ​ ​​​OTAA/ABP Třída A

Temperature
Operating Principle ​ ​ ​Digital CMOSens® technology (MEMS)
Range ​ ​ ​ ​ ​ ​​-20°C-60°C
Accuracy ​ ​ ​ ​ ​​1±0. 2°C
Resolution ​ ​ ​ ​ ​ ​0. 1°C

Humidity
Operating Principle ​ ​ ​ ​Digital CMOSens® technology (MEMS)
Range ​ ​ ​ ​ ​ ​ ​0%-100% RH
Accuracy ​ ​ ​ ​ ​ ​±2% RH
Resolution ​ ​ ​ ​ ​ ​0,5% RH

Carbon Dioxide (CO2)
Operating Principle ​ ​ ​​​Nondispersive Infrared (NDIR)
Range ​ ​ ​ ​ ​ ​​400 to 5000ppm
Accuracy ​ ​ ​ ​ ​​​±(30ppm +3 % of reading)(0°C to +50°C)
Resolution ​ ​ ​ ​ ​​1ppm

Display ​ ​ ​ ​ ​ ​​13-inch Black & White E-Ink Screen
Button​ ​ ​ ​ ​ ​​1 × Power Button 1 × Traffic Light Status Indicator
Configuration ​ ​ ​ ​ ​Mobile App via NFC
Power Supply ​ ​ ​ ​ ​2×2700 mAh ER14505Li-SOCl2 Replaceable Batteries
Battery Life ​ ​ ​ ​ ​​Around 3 Years (10min interval, 25°C)
Operating Temperature ​ ​​-20°C to +60°C (E-Ink Screen: 0°C-40°C)
Ingress Protection ​​ ​ ​​​IP30
Dimension ​ ​ ​ ​ ​​68×65×20. 5mm
Installation ​ ​​ ​ ​​​Wall Mounting


Parameters and specifications

Frequency
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923

Tx Power
16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)

Sensitivity
-137dBm @300bps

Mode
OTAA/ABP Class A

Temperature
Operating Principle
Digital CMOSens® technology (MEMS)

Range
​-20°C-60°C

Accuracy
​1±0. 2°C

Resolution
0. 1°C

Humidity
Operating Principle
Digital CMOSens® technology (MEMS)

Range
0%-100% RH

Accuracy
​±2% RH

Resolution
​0,5% RH

Carbon Dioxide (CO2)
Operating Principle
Nondispersive Infrared (NDIR)

Range
​400 až 5000ppm

Accuracy
±(30ppm +3 % of reading)(0°C to +50°C)

Resolution
​1ppm


Display
​13-inch Black & White E-Ink Screen

Button
​1 × Power Button, 1 × Traffic Light Status Indicator

Configuration
​​Mobile App via NFC

Power Supply
​2×2700 mAh ER14505Li-SOCl2 Replaceable Batteries

Battery Life
Around 3 Years (10min interval, 25°C)

Operating Temperature
-20°C to +60°C (E-Ink Screen: 0°C-40°C)

Ingress Protection
​IP30

Dimension
68×65×20. 5mm

Installation
​Wall Mounting


Where to apply and areas of application

The temperature, humidity and CO2 sensor for indoor use is suitable for offices, shops, schools, hospitals.
